Main capabilities List of main tests possibilities

Climatic tests

Function tests

Vibration tests

Environmental tests

Test system development

Laboratory is equipped with brand new chambers. Using these chambers, the laboratory is able to perform Temperature, Humidity and Thermal shock tests.

Temperature Shock Chambers

Basic parameters:
  • Capacity: 120L and 350L
  • Temperature range: from -80°C to 220°C
  • Transition time between cold and hot chambers: <15sec.

Temperature and Humidity Chambers

Basic parameters:
  • Capacity: from 200L to 1000L
  • Temperature range: from -70°C to 180°C
  • Temperature gradient: 5K/10K/15K min

Test system development

Merit Laboratory has internal capability to create and develop Machine Test Systems for different type of tests

  • Endurance/Durability tests
  • Continuous monitoring with movement control
  • Functional tests (Analog/LIN/CAN interfaces)

Development team’s abilities


  • Mechanical design (CATIA)
  • Mechanics
  • Mechanics simulations including MES
  • Mechanical assembly
  • Design and assembly of electronics including PCBs
  • Electrical projects
  • Electrical assembly (e.g. control and measuring cabinets and test benches)
  • Creation of dedicated measurement and control software
  • Creating data analysis software
  • Creating and adapting test methods

Equipment already developed by the Laboratory:

Functional Test Bench

Test Bench with the ability to check the correctness of the test sample. Functional Test Bench is capable to be used for different type of products:
  • Analog measurements (e.g. resistance, voltage)
  • LIN / CAN functionality check
  • Verification / control backlighting
  • Memory status check
  • Automatization of test sequences
  • Samples programming

Durability Benches

Used for mechanical fatigue tests of samples in all axes and in the range of specified temperatures / humidity ranges.

Continuous monitoring system

Test machine for continuous monitoring of test samples under various conditions.
During monitoring are constantly checked:
  • Power levels
  • Power consumption,
  • Communication (LIN / CAN) and DTC
  • Other analogue signals of the samples (e.g. resistance)

Function tests

Zwick Machine

In Laboratory Zwick Machine is designed for tensile and compression tests
Basic parameters:
  • Range of strength: 0kN-5kN
  • The speed of determination of measurement data: 400kHz
  • Two interchangeable heads
Possible tests:
  • Force and Travel measurements
  • Contact Travel verification
  • Mechanical tests
  • Destructive tests

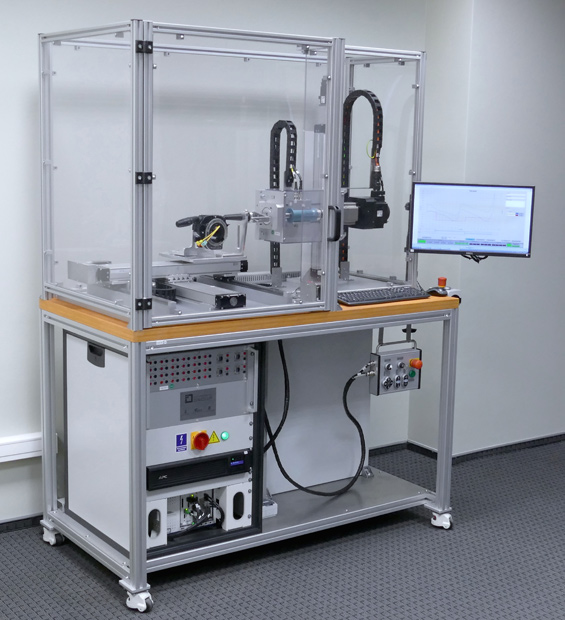

Torquemeter

Torquemeter is purposed for testing of torque vs angle in specified speed based on customer specification.
Basic parameters:
  • Torque: 0Nm / 10Nm
  • Rotation angle: 360 deg (or any specify)
  • Speed range: 5-120 deg/sec
  • Automated positioning mounting table in X ,Y, Z axes and rotation
Possible tests:
  • Torque and Angle measurements
  • Contact travel verification
  • Mechanical tests
  • Destructive tests

Vibration tests

Vibration Shaker with Climatic Chamber

Vibration system is covering most of the existing test standards.
Possible tests:
  • Random Vibration
  • Sinusoidal tests
  • Resonance tests (search for resonance frequencies, Endurance tests)
  • Mechanical shocks
  • Control Temperature and Humidity during Vibration tests

Environmental tests

Splash water tester

Splash water tester is purposed for testing resistibility
of electrotechnical products against water
Possible tests:
  • IPX 1, 2
  • IPX 3, 4
  • IPX 5, 6, 6K
Maximum weight of the tested element: 30kg

Dust Chamber

Dust Chambers allow reproducible testing of the resistibility of electro-technical products against dust.
Possible tests according to standards:
  • DIN EN 60529
  • SAE J 575
  • ISO 20653
Types of dust used:
  • Talc powder
  • Unroasted Portland cement
  • Desert dust from Arizona class A2
Maximum weight of the tested element: 50kg
If you have questions, please contact us: [email protected]
In the title of the message, please enter: Validation Laboratory.
