EMC Laboratory

ESD test system main capabilities are: voltages up to 30 kV in both air/contact discharge mode.
Basic parameters:
  • Air discharges: 200V – 30kV
  • Contact discharges: 200V – 30kV
  • Holding time: >5s
  • Recurrence: 0.5, 1, 5, 10, 20, 25 Hz (air discharges), 0.5, 1, 5, 10, 20 Hz (contact discharges)

Automotive Transient Immunity Test System

Transient immunity systems simulate various transients for the conduced immunity EMC tests.
Systems includes:
  • Ultra Compact Simulator, range: 80V/50A
  • AutoWave recorder and generator, range: 2-ch, DC-50kHz
  • Load Dump, range: 20V-200V
  • Power Fail System, range: 80V/50A
  • Voltage Drop Simulator, range: 60V/50A

Transient and Conducted Emission Test System

The EMI test receives is used for diagnostic measurements during development and precompliance measurements for final certification testing.
Basic parameters:
  • Frequency range: 9 kHz – 7 GHz

Conducted Immunity BCI Method Test System

BCI system is used for conduced immunity tests in frequency range 9kHz - 400MHz
Subsystem components:
  • Signal Generator, range: 9kHz – 3.2 GHz
  • Broadband Amplifier, range: 9kHz-400MHzBroadband Amplifier, range: 9kHz-400MHz
  • Power Sensors, range: 8kHz – 6 GHzPower Sensors, range: 8kHz – 6 GHz

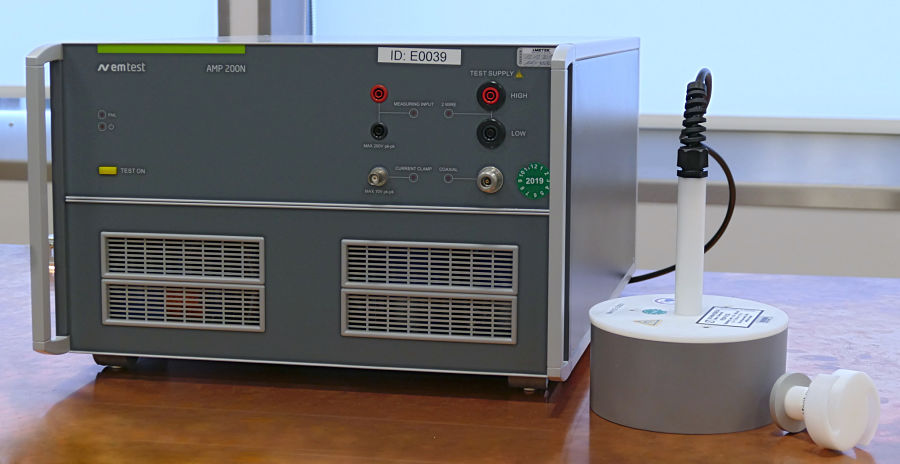

Low Frequency and Magnetic Field Test System

Magnetic field immunity system is used to test device susceptibility to external low frequency magnetic field.
Subsystem components:
  • LF Signal Amplifier, range: DC – 200kHz
  • Audio Transformer Assembly, range: 10Hz – 250kHz
