Protoshop

The prototyping process is an indispensable validation step for both: design optimization and production preparation process.

In order to meet customer’s expectations and deliver prototypes with highest possible quality, Merit has built it’s own prototyping lab offering the most advanced technologies. Above all, Merit’s prototyping lab is our passionate team and people with years of experience in the automotive industry. Their unique skills combined with all the latest technologies available in Merit’s prototyping lab are the key to our and our customers’ success. We pay so much attention to our employee’s skills that we started building our own state of the art lab from hiring the most talented people and then providing them with a modern workplace.

We are self-sufficient in a space of product design, testing, validation and building some very advanced prototypes with a quality hard to distinguish from a finally produced product. Our pleasantly surprised customers, not able to tell the difference between the prototypes we have built and the final production parts are the best proof that our prototyping lab did a great job.

Main capabilities

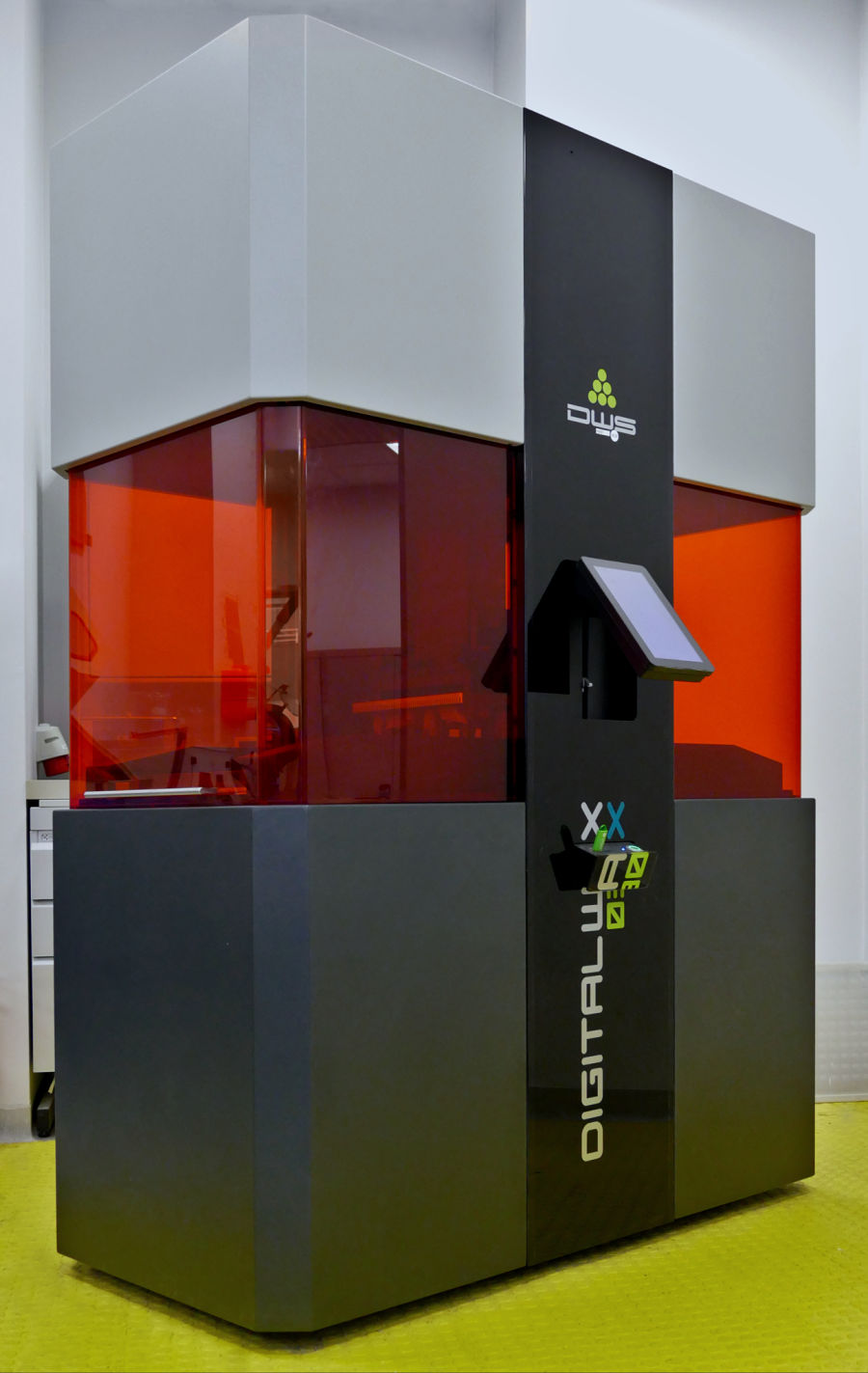

DIGITALWAX

The DIGITALWAX 030 is a stereolithography 3D printer. It was developed  for quickly produce high-quality, high-resolution precision models: realistic models, concept models, functional prototypes and prototypes of consumer products.
Basic parameters:
  • Printing area: 300 x 300 x 300 mm
  • Layer thickness: 10-100 µm (depending on the type of material used)
  • Light source: Solid State BluEdge
  • Scanning method: Galvanometer

Anycubic photon

The Anycubic photon is a resin printer.
Basic parameters:
  • Technology: DLP,
  • Printing technique: LCD Shadow Masking,
  • Light source: UV integrated light (wavelength 405nm),
  • Printing speed: 20mm/h,
  • Printing material: 405nm light-curing resin,
  • Printing field: 115mm *65mm *155mm.

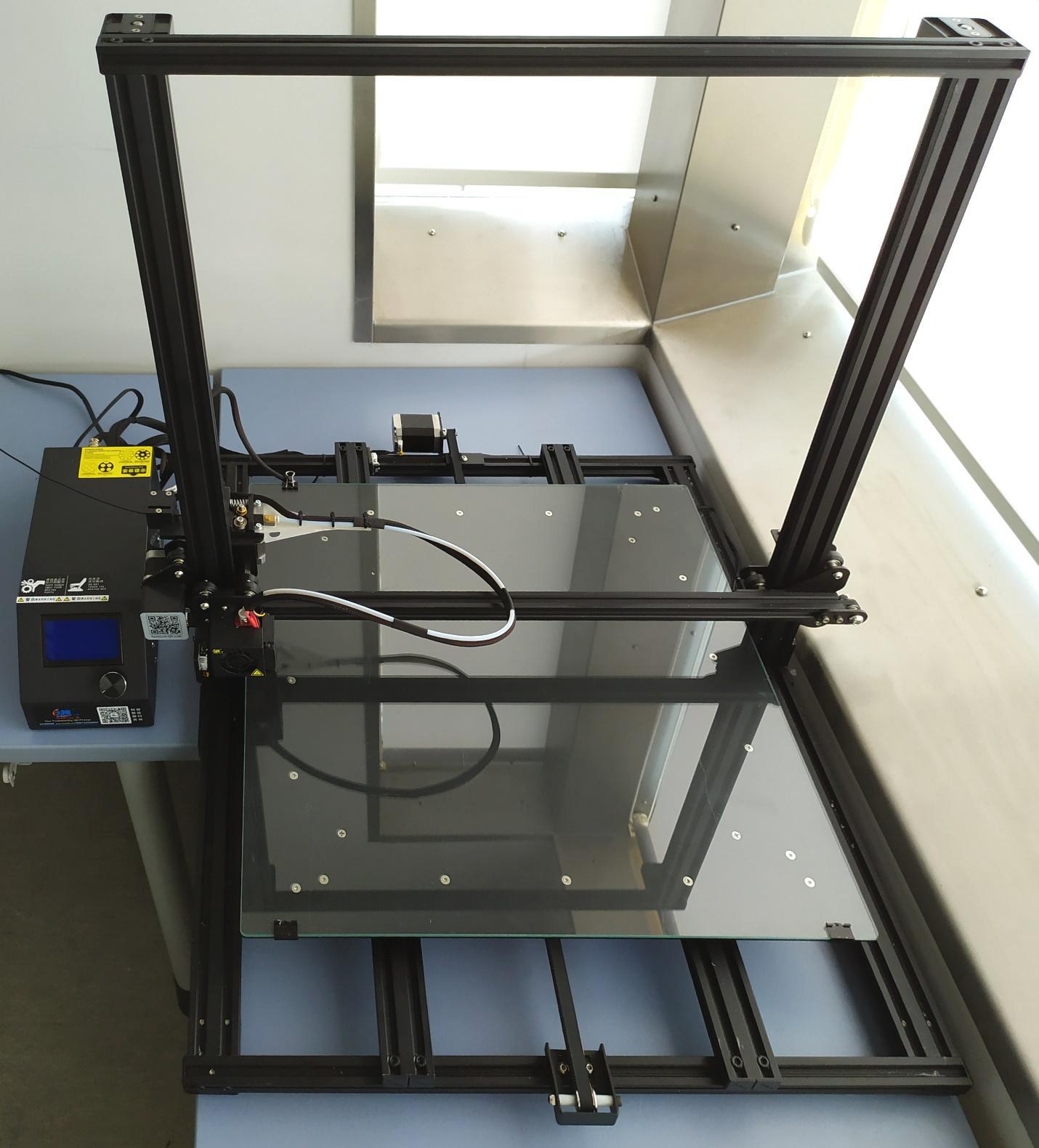

Creality CR-10 S5

Basic parameters:
  • Forming technology: FDM,
  • Print size: 500*500*500mm,
  • Print speed: normal 60mm/s, max 100mm/s

Milling Plotter

Milling Plotter CNC is a top-class CNC machining center.
Basic parameters:
  • Clearance and Z axis Range: 500mm
  • Drives: Helical hardened honed X, Y, ball screw Z axis
  • Moving speed: 20 m/min
  • Positioning accuracy: 0,01mm

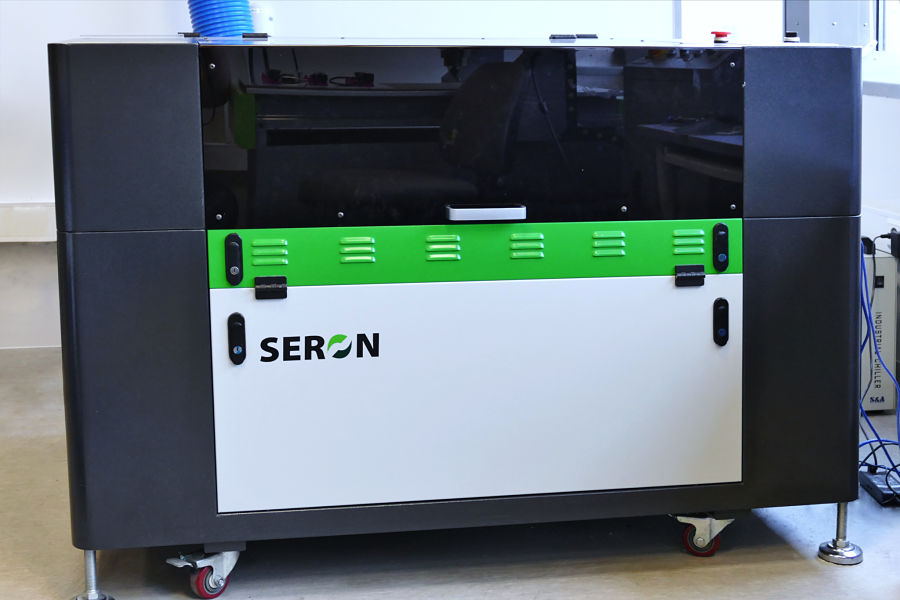

Laser engraver

Laser engraver is used for cutting and engraving materials such as Plexiglas, leather, rubber, wood, plywood, paper, cork, textiles and all kinds of engraving laminates etc.
Basic parameters:
  • Positioning accuracy: 0,01mm
  • Motors: stepper
  • Laser tube power: 60W-100W
  • Working speed: up to 1000 mm/s
If you have questions, please contact us: iwetta.szewczyk@merit-automotive.com
In the title of the message, please enter: Protoshop.
