Column Integrated Modules

Column Integrated Modules

Merit’s Column Integrated Modules (CIM) integrate security and convenience features in a single steering column module. Simplifying manufacturability with plug and play installation, CIMs offer interchangeable levers for left-and right-hand drive vehicles ...

A product of complex switching technology and electronic knowledge, Merit has been producing column integrated and steering column modules for over a decade. Always focused on customer requirements, Merit can include not only stalk switches, but also accessory controls, semi-automatic gear box controls, and angle sensor for electronic stability protection and electric steering system.

The Merit Advantage

  • Optimized overall system cost
  • Reduced assembly cost at vehicle manufacturer’s plants
  • Reduction of wiring complexity, leads and connections
  • Modularity (plug and play levers )
  • High angle sensor accuracy
  • Customization of TALCS (touch, appearance, lighting, color, sound)
  • Integration of new functions: Gearshift, lane departure warning interface
  • Optional vehicle interface through serial network

Benefits

  • Stalk switches
  • Plug-in optional control switches
  • Clock spring
  • Ignition Switch
  • Pedal Position Switch
  • Steering angle sensor
  • Lighting control
  • Integrated electronic interface
  • Integrated immobilizer
  • Integrated RF key fob receiver
  • Heated wheel
  • Self-diagnostic capability
  • Fixed hub application available

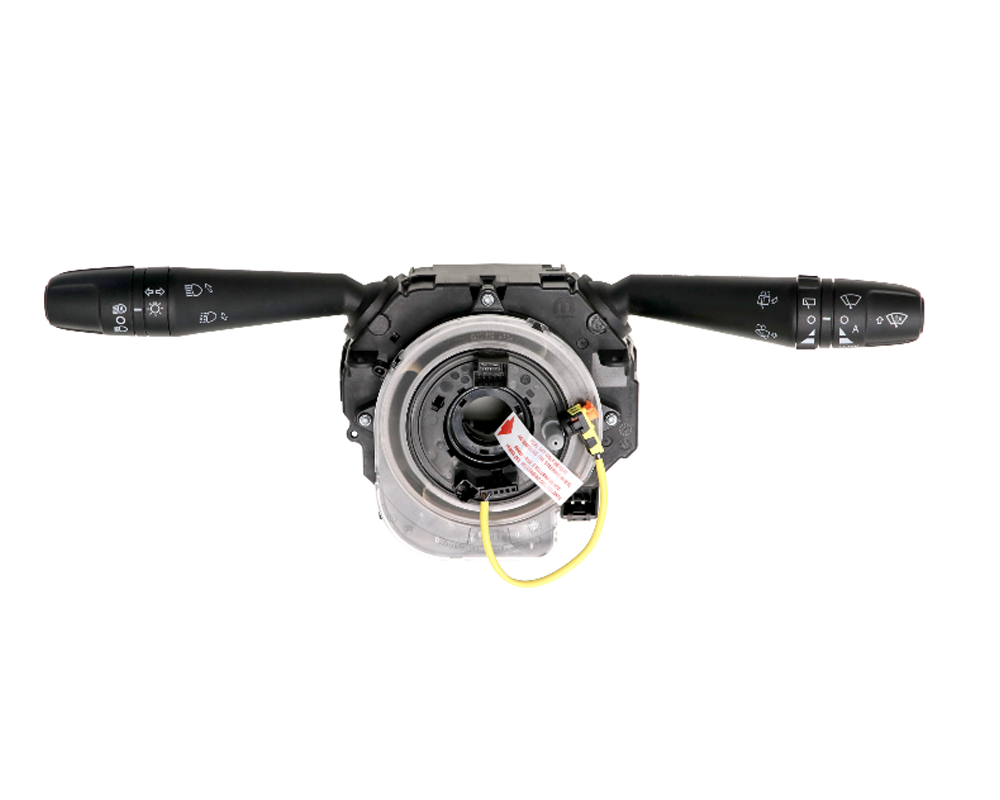

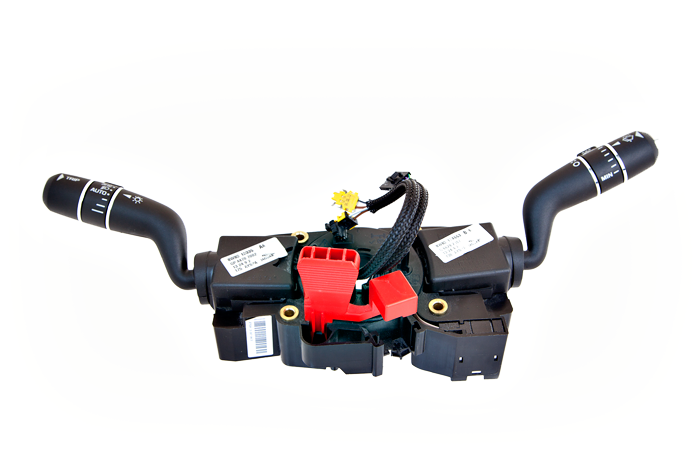

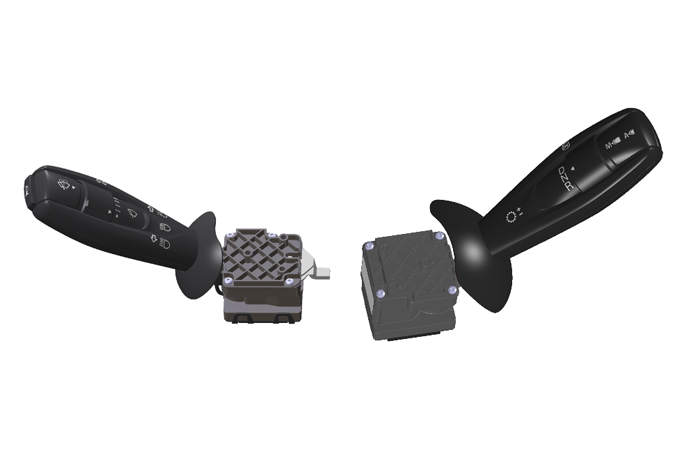

Merit column integrated module Merit column integrated module Merit column integrated module Merit column integrated module Merit column integrated module

Merit column integrated modules integrate security and convenience features in a single module.
